Helix Remote valve

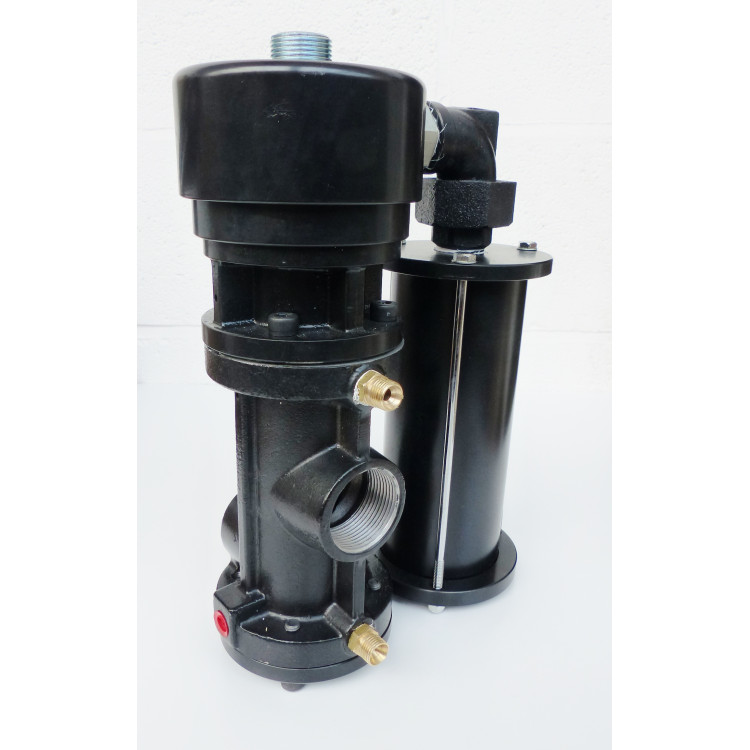

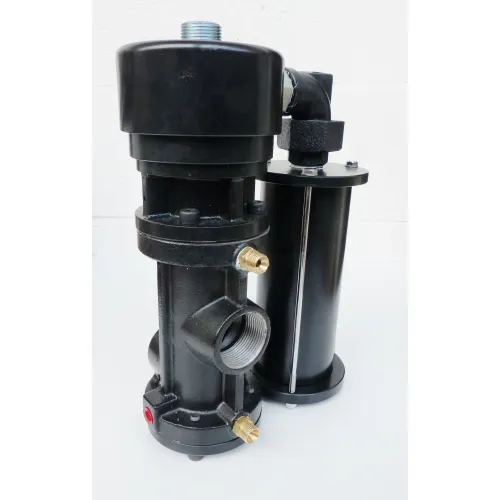

Panblast Helix 150 shot blast pot remote valve

Panblast part no : BAC-RC-PB-0307

The ever popular RMS type, blast pot remote control valve

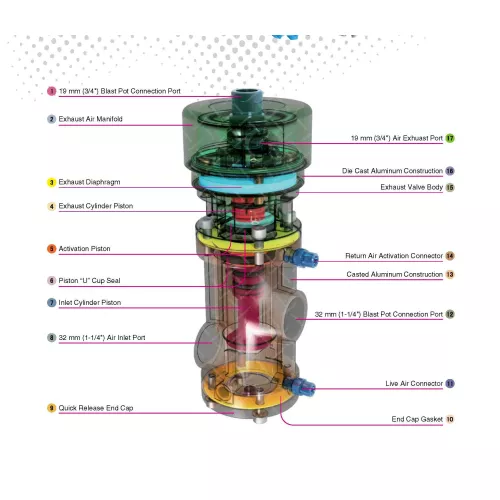

The Helix 150 Valve is a one-piece combination inlet/outlet valve assembly used to both pressurize and depressurize the blast pot. An inlet spool piston and piston/diaphragm arrangement provides for a safe and effective control of the blast machine. 32 mm (1-1/4") BSP threads.

Equivalent to Hodge Clemco RMS 100

1.1/4" ports

Allows operator to control machine on/off from a deadman handle fitted close to the blast nozzle.

Pan Helix 150 (RMS) Valve - 157 kb
