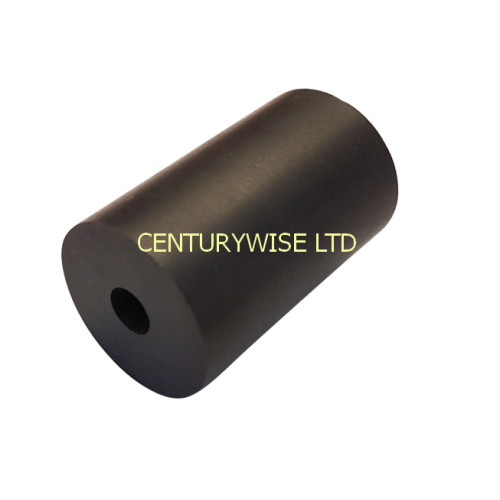

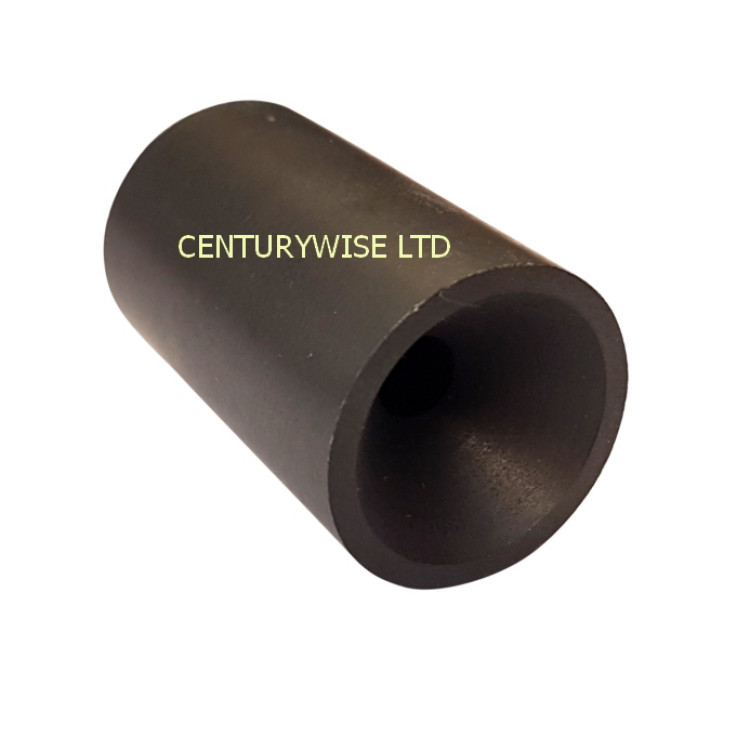

Boron Carbide Blast Cabinet Gun Nozzle - High-Durability Abrasive Blasting Nozzle

Current stock :  8 no. x  3mm orifice , 2 no. x 4mm  3 no. x 6mm  , 3 no. x 7mm , 2 no. x 8mm , 3 no. x 10mm  ... please add note of size required during checkout


Product Overview: Upgrade your blasting cabinet with this premium Boron Carbide BNP Blast Gun Cabinet Nozzle. Built to withstand extreme wear and tear, this nozzle offers superior durability, precision, and efficiency for all your abrasive blasting needs. Boron carbide is one of the hardest materials available, making this nozzle ideal for professional and industrial use.


Lasts many, many times longer than the standard cheap pink ceramic nozzles.

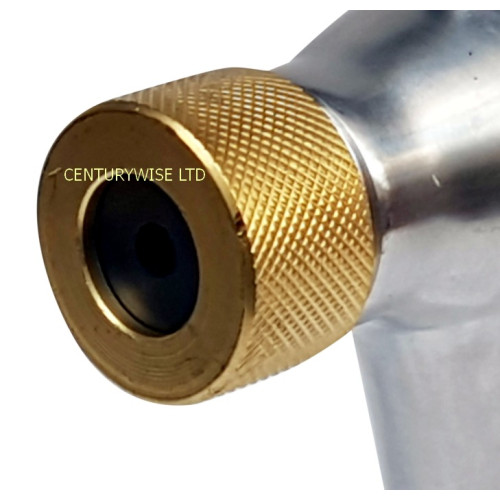

Fits CS48, BNP, Clemco Zero BNP Suction Guns.


Key Features:

  • Material: Boron Carbide - Exceptional hardness, wear resistance, and extended service life.

  • Efficiency: Maintains optimal air pressure for faster, more effective blasting.

  • Durability: Lasts significantly longer than standard pink ceramic or tungsten carbide nozzles.


Product Specifications:

  • Material: Boron Carbide

  • Size Options: Available in multiple bore diameters (specify size when ordering)

  • Length: 35mm

  • Outer Diameter: 22mm

Why Choose Boron Carbide? Boron carbide is one of the hardest materials in existence, second only to diamond. This results in unmatched wear resistance, meaning you can blast for longer without needing to replace your nozzle. It’s an ideal choice for professionals looking to reduce downtime and maximize efficiency.


Choose the right nozzle for your compressor's air output ... Approx CFM air required per nozzle orifice size ...

1) To achieve 100psi ....                  2) To achieve 40psi

3mm : 18 CFM                                       10 CFM

4mm : 30 CFM                                       15 CFM

5mm : 48 CFM                                       22 CFM

6mm : 75 CFM                                       38 CFM

7mm : 110 CFM                                     50 CFM

8mm : 140 CFM                                     65 CFM

10mm : 210 CFM                                   98 CFM


Applications:

  • Surface preparation

  • Rust and paint removal

  • Glass etching

  • Industrial cleaning

  • And more!


Condition: Brand new, and ready for immediate use.

What’s Included: 1 x Boron Carbide Blast Nozzle  - Select bore size when ordering.


Write a review

Note: HTML is not translated!
    Bad           Good

Boron Carbide BNP Blast Cabinet Gun Nozzle

  • Product Code: CW571
  • Availability: 23
  • £33.00

  • Incl Tax: £39.60

Tags: Boron, Carbide, blast, cabinet, gun, nozzle, long lasting, CS48, BNP, Clemco Zero BNP Suction Guns
